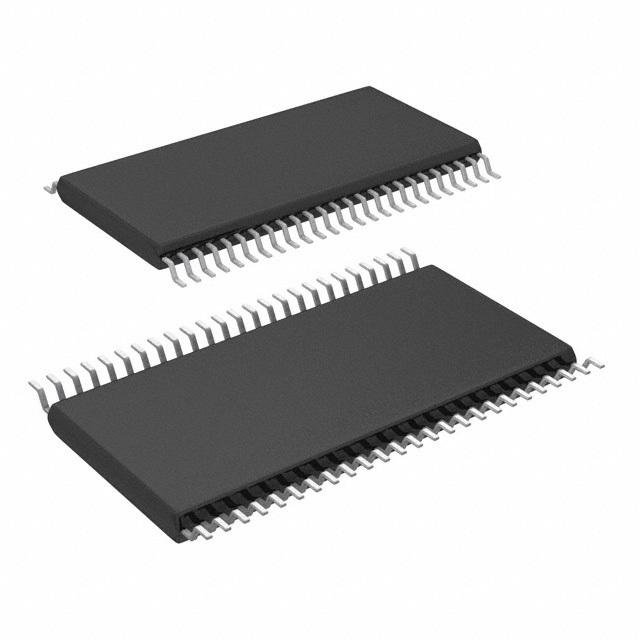

Image is for your reference only,please check specifications for details
- DS90C365AMT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC80270136
-
Category:Interface IC, Interface Controller
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS DS90C365AMT CAN Bus, Transceiver, 3V, 3.6V, TSSOP
-
Stock Locations:
-
Availability:220 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.59
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS90C365AMT is a Transmitter converts 21-bits of LVCMOS/LVTTL data into four LVDS (low voltage differential signalling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over the fourth LVDS link. Every cycle of the transmit clock 21-bits RGB of input data are sampled and transmitted. At a transmit clock frequency of 87.5MHz, 21-bits of RGB data and 3-bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) are transmitted at a rate of 612.5Mbps per LVDS data channel. Using a 87.5MHz clock, the data throughput is 229.687Mbps. This transmitter can be programmed for Rising edge strobe or falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe FPDLink Receiver without any translation logic. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces with added spread spectrum clocking support.
- Pin-to-Pin-compatible to DS90C363, DS90C363A and DS90C365
- No special start-up sequence required between clock/data and /PD pins
- Supports spread spectrum clocking up to 100kHz frequency modulation
- Narrow bus reduces cable size
- Up to 1.785Gbps throughput
- Up to 223.125Mbps bandwidth
- 345mV Typical Swing LVDS devices for low EMI
- PLL requires no external components
- Compliant to TIA/EIA-644 LVDS standard
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
DS90C365AMT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Positions | 48 Position |
| Power Dissipation | 1980 W |
| Data Rate | 1.78 Gbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -10℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
