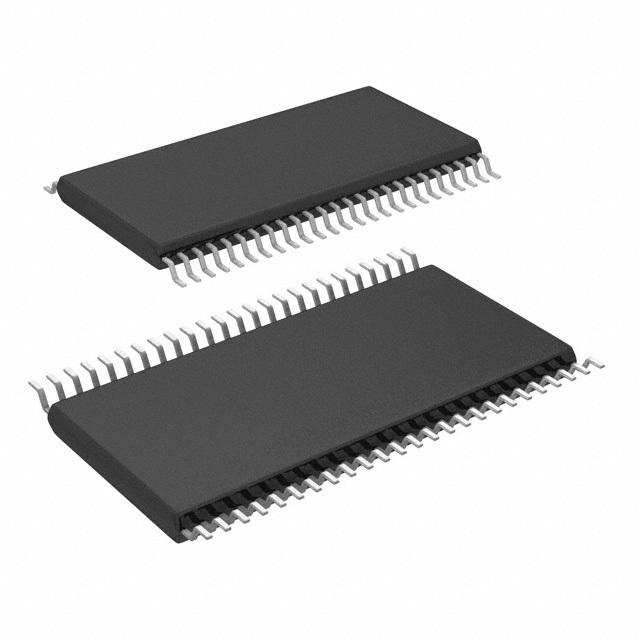

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DS90CR216MTD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Supply Voltage (DC)	3.30 V, 3.30 V (max)
Supply Current	55.0 µA
Power Dissipation	1.89 W
Output Voltage (Max)	450 mV
Input Current (Min)	10 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1890 mW
Supply Voltage	3V ~ 3.6V
	Show
Size-Length	12.5 mm
Size-Width	6.1 mm
Size-Height	0.9 mm
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
