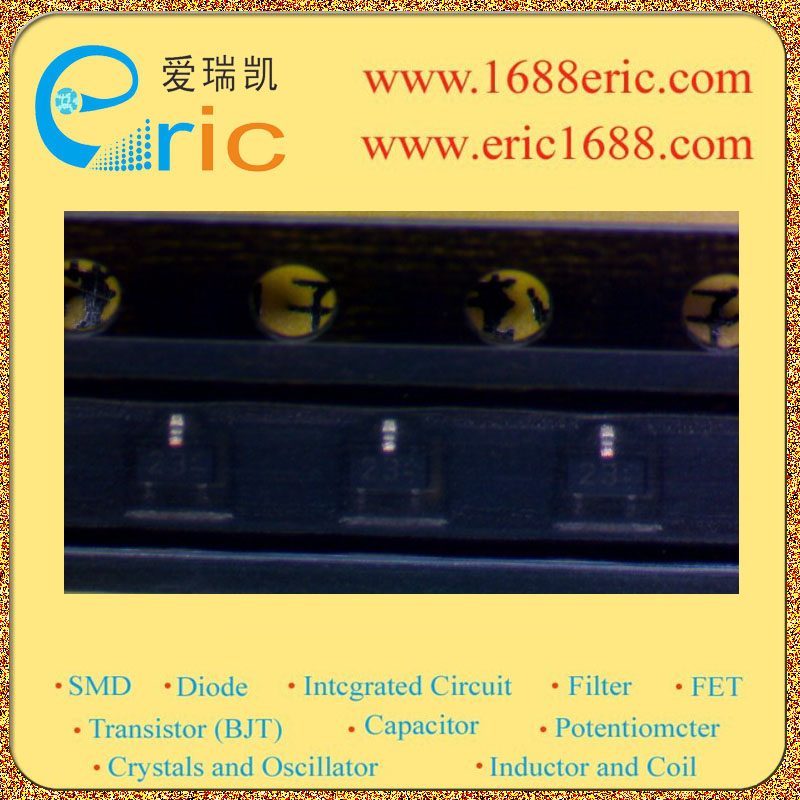

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features
1) Built-In Biasing Resistors, R1 = R2 = 4.7kW.
2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit).
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects.
4) Only the on/off conditions need to be set for operation, making the circuit design easy.
5) Complementary PNP Types :DTA143E series
6) Lead Free/RoHS Compliant.
Application
Switching circuit, Inverter circuit, Interface circuit, Driver circuit

Show

DTC143EE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-523
Polarity	NPN
Power Dissipation	0.15 W
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.1A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	250 MHz
Power Dissipation (Max)	150 mW
	Show
Product Lifecycle Status	Active
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
