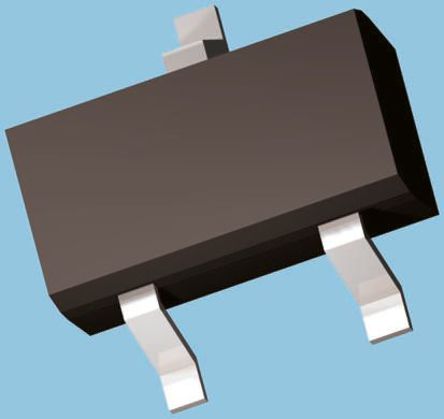

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DZ3X062D0L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Forward Voltage	1V @10mA
Power Dissipation	200 mW
Test Current	5 mA
Zener Voltage	6.2 V
Maximum Forward Voltage (Max)	1V @10mA
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	2.9 mm
Size-Width	1.5 mm
Size-Height	1.1 mm
Temperature Coefficient	2.3 mV/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
