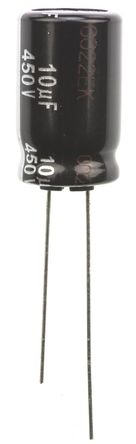

Image is for your reference only,please check specifications for details

EEUED2W100 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC58515414
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum 10uF 450V 20% (12.5 X 20mm) Radial 5mm 350mA 10000 hr 105℃ Bulk
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic ED series capacitors are type A, radial leaded, polarized aluminium electrolytic capacitors. The capacitance values ranges from 10µF to 330µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
High reliability
Rated voltage range from 160VDC to 450VDC
±20% tolerance
Endurance is 10000h at 105°C
Operating temperature range -25°C to 105°C
Capacitor size varies from 10mm x 20mm to 18mm x 40mm (D x L)

Show

EEUED2W100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	5 mm
Voltage Rating (DC)	450 V
Capacitance	10 µF
Capacitance Tolerance	±20 %
Ripple Current	350 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	450 V
	Show
Size-Length	20.0 mm
Size-Height	20 mm
Size-Diameter	12.5 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-25℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Each
Life (Hours)	10000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
