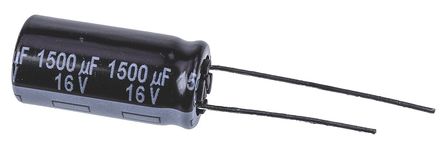

EEUFR1C152 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC43716333
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum 1500uF 16V 20% (10 X 20mm) Radial 5mm 2180mA 10000 hr 105℃ Bulk
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EEU-FR1C152 is a radial leaded Aluminum Electrolytic Capacitor features high reliability, long life, low impedance and high ripple current. The FR-A series aluminum electrolytic capacitor is suitable for high reliability application such as an industrial instrument.
PVC sleeve sheathing (metal case)
Polar polarity type
240µA Maximum leakage current
2180mA RMS at 100kHz/+105°C Rated ripple current
0.020R at 100kHz/+20°C Impedance

Show

EEUFR1C152 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	5 mm
Voltage Rating (DC)	16.0 V
Capacitance	1500 µF
Capacitance Tolerance	±20 %
Ripple Current	2180 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±20 %
Voltage Rating	16 V
	Show
Size-Height	20 mm
Size-Diameter	10.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Each
Life (Hours)	10000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
