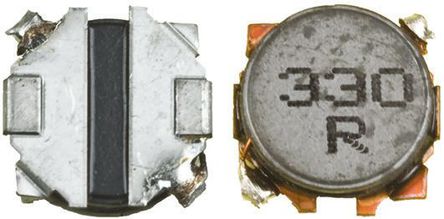

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ELLVEG100M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	1212
Capacitance Tolerance	±20 %
Inductance	10 µH
Self Resonant Frequency	100 kHz
Part Family	ELLVEG
Resistance	480 mΩ
Resonant Frequency	100 kHz
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	480 mΩ
Resistance (DC Max)	0.48 Ω
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
