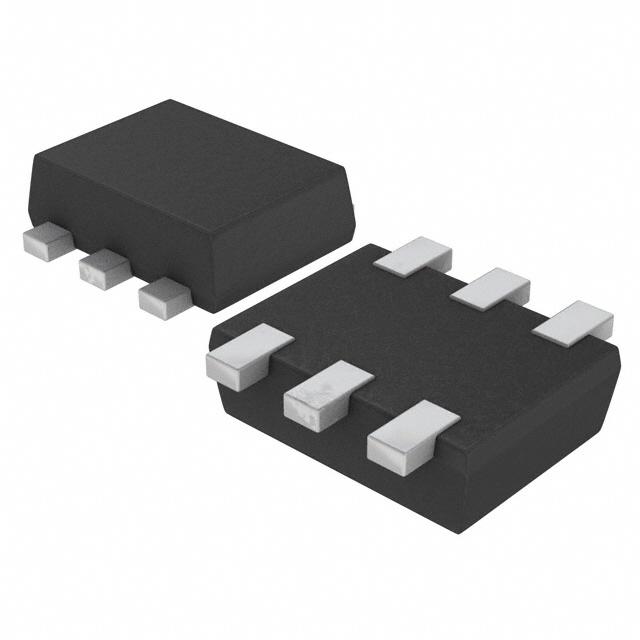

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

EM6K1T2R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-563-6
Voltage Rating (DC)	30.0 V
Current Rating	100 mA
Number of Channels	2 Channel
Drain to Source Resistance (on) (Rds)	7 Ω
Polarity	Dual N-Channel
Power Dissipation	0.12 W
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Continuous Drain Current (Ids)	100 mA
Rise Time	35 ns
Input Capacitance (Ciss)	13pF @5V(Vds)
Input Power (Max)	150 mW
Fall Time	80 ns
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.6 mm
Size-Width	1.2 mm
Size-Height	0.5 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
