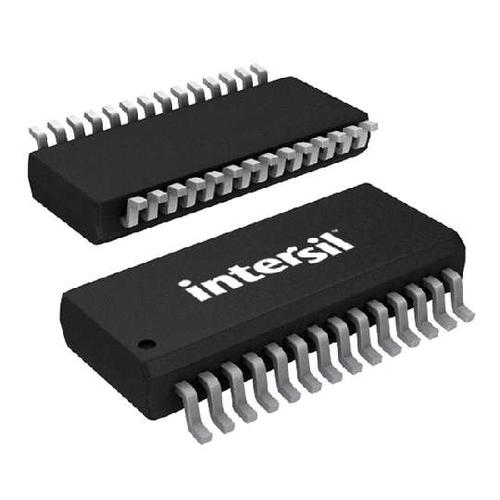

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ISL6227CAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	QSOP-28
Frequency	300 kHz
Supply Voltage (DC)	5.00V (min)
Number of Outputs	2 Output
Input Voltage (DC)	28.0 V
Output Voltage	0.9V ~ 5.5V
Output Current	1.5 A
Number of Positions	28 Position
Number of Regulated Outputs	2 Output
Switching Frequency	345 kHz
Maximum Duty Cycle	87 %
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage	5 V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	5 V
Input Voltage	5V ~ 28V
	Show
Operating Temperature	-10℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
