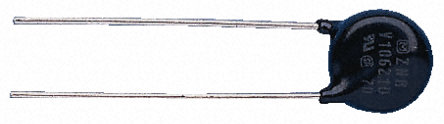

Image is for your reference only,please check specifications for details

ERZV14D391 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC86136589
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS ERZV14D391 TVS Varistor, 250V, 320V, 650V, Disc 14mm, High Surge Current
Stock Locations:
Availability:
132 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Are you looking for a nonlinear resistor? This ERZ-V14D391 MOV from Panasonic will exceed your needs! This part has a pitch of 7.5 mm. Its maximum surge current is 6000 A. This device"s clamping current is 50 A and clamping voltage is 650 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 390 V. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 320 VDC. Its capacitance value is 500pF. This product is 18.5 mm tall and 5.8 mm deep with a diameter of 15.5 mm.

Show

ERZV14D391 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	320 V
Voltage Rating (AC)	250 V
Capacitance	500 pF
Power Rating	600 mW
Clamping Voltage	650 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	320 V
Voltage Rating (AC Max)	250 V
	Show
Size-Width	5.8 mm
Size-Height	18.5 mm
Size-Thickness	5.8 mm
Material	Zinc Oxide
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
