ESD7381MUT5G ON Semiconductor - TVS Diode

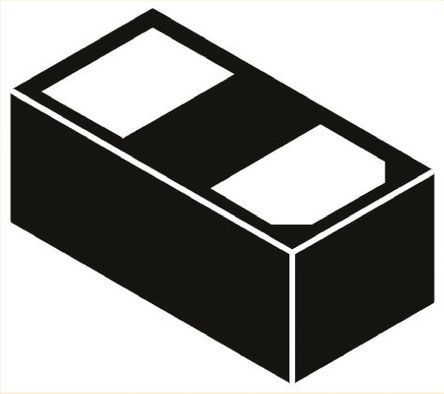

Image is for your reference only,please check specifications for details

ESD7381MUT5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC12230433
Category:
TVS Diode
Package:
DFN-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR ESD7381MUT5G TVS-диод, серия ESD7381, однонаправленный, 3,3 В, 10 В, X3DFN, 2 вывода
Stock Locations:
Availability:
228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Микросхема ESD7381 предназначена для защиты чувствительных к напряжению компонентов, требующих сверхнизкой емкости, от электростатических разрядов (ЭСР) и переходных перенапряжений. Отличная способность к ограничению напряжения, низкая емкость, низкий ток утечки и быстрое время отклика делают эти приборы идеальными для защиты от ЭСР в конструкциях, где площадь платы ограничена. Благодаря низкой емкости он подходит для использования в высокочастотных конструкциях, таких как высокоскоростные линии USB 2.0 и антенные линии.
Особенности
---
|
Сверхнизкая емкость: 0,37 пФ
Вносимые потери: 0,030 дБм
Низкое динамическое сопротивление < 1 Ом
Защита от ЭСР уровня 4 по IEC6100042

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DFN-2
Capacitance	0.55 pF
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Power Dissipation	250 mW
Clamping Voltage	10 V
Test Current	1 mA
Peak Pulse Power	250 mW
Min Breakdown Voltage	5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	0.62 mm
Size-Width	0.32 mm
Size-Height	0.28 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
