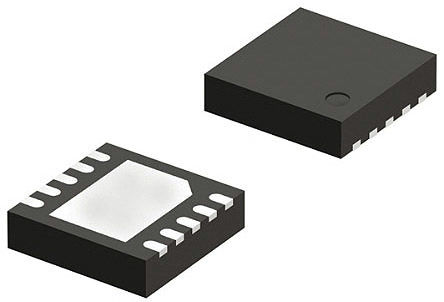

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESD7504MUTAG is a low capacitance ESD Protection TVS Diode for high speed data line. It is designed to protect high speed data lines from ESD. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0.
Low capacitance (0.55pF I/O to GND)
Low ESD clamping voltage
IEC 61000-4-2 (Level-4) Protection
-55 to 125°C Operating junction temperature range

Show

ESD7504MUTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UDFN-10
Operating Voltage	3.3 V
Capacitance	0.55 pF
Breakdown Voltage	5 V
Number of Positions	10 Position
Clamping Voltage	13.7 V
Test Current	1 mA
Min Breakdown Voltage	4 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.5 mm
Size-Width	1 mm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
