Description

The ESD8008 is designed specifically to protect four high speed differential pairs. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to
maintain consistent impedance for the high speed lines.
**Features:**
* Integrated 4 Pairs (8 Lines) High Speed Data
* Single Connect, Flow through Routing
* Low Capacitance (0.35 pF Max, I/O to GND)
* Protection for the Following IEC Standards: IEC 61000-4-2 Level 4
* UL Flammability Rating of 94 V-0
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
**Typical Applications:**
* V-by-One HS
* LVDS
* Display Port

Show

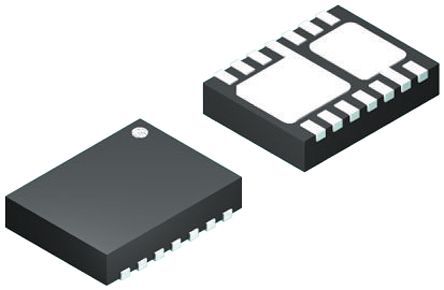

ESD8008MUTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	UDFN-14
Operating Voltage	3.3 V
Capacitance	0.35 pF
Breakdown Voltage	5.5 V
Number of Positions	14 Position
Clamping Voltage	8.1 V
Test Current	1 mA
Min Breakdown Voltage	5.5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	5.5 mm
Size-Width	1.5 mm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
