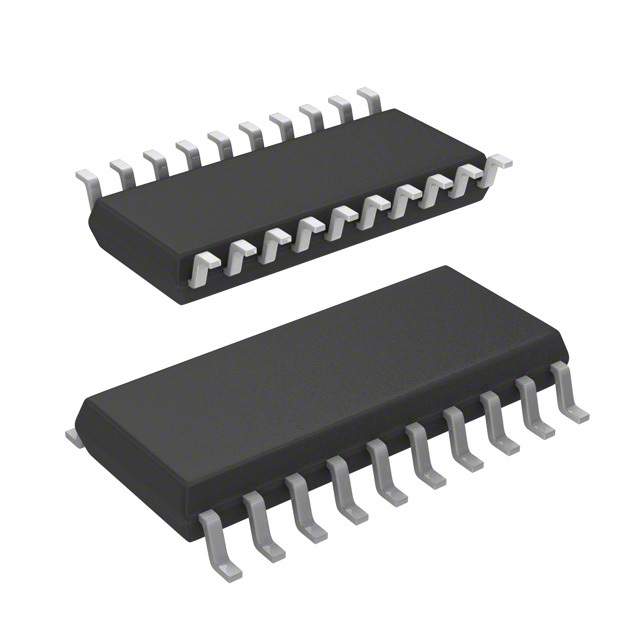

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESDA6V1S3 is a Transil™ Monolithic TVS Array for ESD protection. It is designed to protect components which are connected to data and transmission lines against ESD. It clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients.
18 Unidirectional Transil™ functions
<2µA Maximum low leakage current (IR)
200W (8/20 µs) Peak pulse power
High ESD protection level up to 25kV
High integration
Suitable for high density boards

Show

ESDA6V1S3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Voltage Rating (DC)	6.10 V
Operating Voltage	1.25 V
Capacitance	120 pF
Power Rating	200 W
Breakdown Voltage	6.1 V
Number of Circuits	18 Circuit
Number of Positions	20 Position
Test Current	1 mA
Max Breakdown Voltage	7.2 V
Peak Pulse Power	200 W
Min Breakdown Voltage	6.1 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	13.0 mm
Size-Width	7.60 mm
Size-Height	2.35 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
