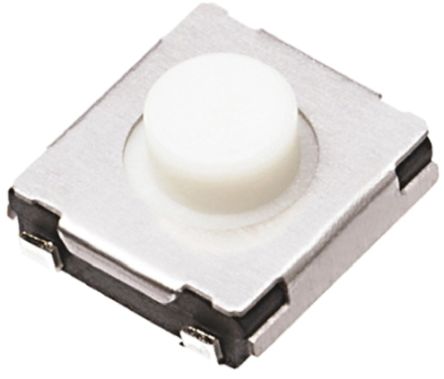

Image is for your reference only,please check specifications for details

EVQQ2U03W - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC14403153
Category:
Tactile Switch, Jog Switch
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 2.6N SMD Embossed T/R
Stock Locations:
Availability:
50 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 05/07/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

EVQQ2U03W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Actuator Type	Standard
Current Rating	20 mA
Orientation	Vertical
Contacts Type	SPST-NO
Contact Current Rating	20 mA
Operating Force	2.60
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	15 VDC
Voltage Rating (DC Max)	15 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	6 mm
Size-Width	6.6 mm
Size-Height	3.1 mm
Size-Thickness	1.80 mm
Color	White
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
