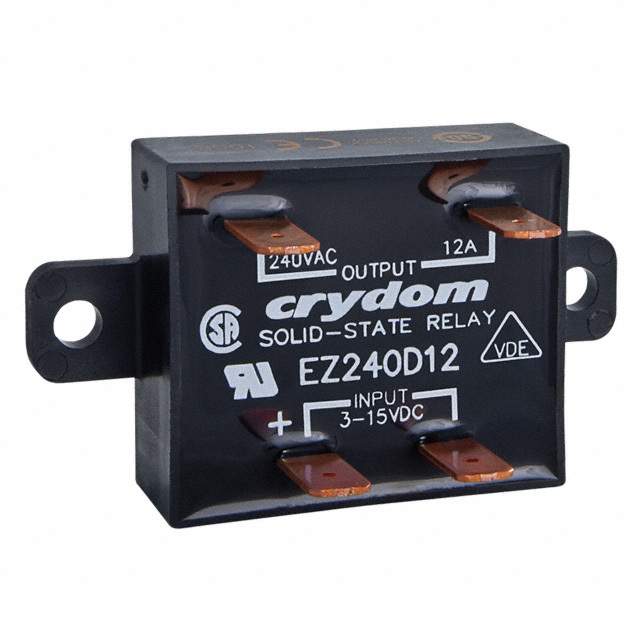

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EZ series panel-mount Solid State Relay with compact design for low-profile applications.
- SCR output for heavy industrial loads
- AC or DC control
- 1/4" Fast-on terminals for easy installation
- Hazard of electric shock, explosion or arc flash. Disconnect all power before installing or working with this equipment. Verify all connections and replace all covers before turning ON power.
EZ240D12 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis |
| Number of Pins | 4 Pin |
| Case/Package | Module |
| Supply Voltage (DC) | 3.00 V, 15.0 V (max) |
| Current Rating | 12 A |
| Output Voltage | 24V ~ 280V |
| Output Current | 12000 mA |
| Contacts Type | SPST-NO |
| Load Current | 12 A |
| Input Current | 15 mA |
| Power Dissipation | 500 mW |
| Isolation Voltage | 4000 v |
| Input Impedance | 300 Ω |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 15 mA |
| Load Current (Min) | 150 mArms |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 24 Vrms |
| Operating Voltage (Max) | 280 Vrms |
| Input Voltage | 15 V |
| Show | |
| Size-Length | 66.8 mm |
| Size-Width | 24.1 mm |
| Size-Height | 38.1 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
