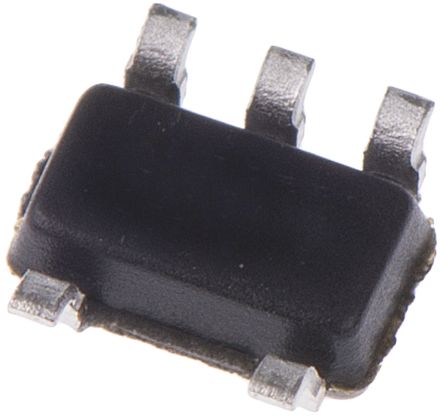

Image is for your reference only,please check specifications for details
- FAN3180TSX - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC44431076
-
Category:FET Driver
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Driver 2.8A 1Out Low Side Non-Inv 5Pin SOT-23 T/R
-
Stock Locations:
-
Availability:1,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.05
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FAN3180 combines a high-speed low-side gate driver with a 3.3 V output Low Drop Out (LDO). The gate driver is rated to 2.8 A peak current at V of 12 V and is designed to drive an N-channel enhancement-mode MOSFET in low-side switching applications. The FAN3180 also integrates a 3.3 V, 15 mA LDO with tight voltage tolerance of ±1% at 25°C and ±2.5% of total variation for powering external microcontrollers. Internal circuitry provides an Under-Voltage Lockout (UVLO) function by holding the output low until the supply voltage is within the operating range and the first full input pulse is detected. The FAN3180 has UVLO thresholds of 4.75 V V and a maximum standby supply current of 200 µA.The driver delivers fast MOSFET switching performance to maximize efficiency in high-frequency power converter designs. It incorporates the MillerDrive™ architecture for the final output driver stage. This bipolar-MOSFET combination provides high peak current during the Miller plateau stage of the MOSFET turn-on / turn-off process to minimize switching loss, while providing rail-to-rail voltage swing and reverse-current capability. Thermal shutdown function is included as an additional safety feature.
- Features
- ---
- |
- Gate Driver
- Peak 2.8 A / 2.5 A Sink / Source at VDD = 12 V
- 2.5 A Sink / 1.8 A Source at VOUT = 6 V
- Non-Inverting Logic Configuration
- TTL-Compatible Input Thresholds
- 23 ns Typical Delay Time
- 19 ns / 13 ns Rise and Fall Times with 1 nF LoadLDO
- 3.3 V, 15 mA Output
- ±1% at 25°C, ±2.5% Total VariationGeneral
- -40°C to +125°C Operation Temperature
- 5 V to 18 V Operating Range
- VON / VOFF UVLO of 4.75 V / 4.55 V
- 200 µA Maximum Standby Supply Current
- Lead (Pb)-Free Green 5-Pin SOT23 Package
FAN3180TSX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Rise/Fall Time | 19ns, 13ns |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Number of Positions | 5 Position |
| Rise Time | 19 ns |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Fall Time | 13 ns |
| Fall Time (Max) | 25 ns |
| Fall Time (Max) | 30 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.7 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
