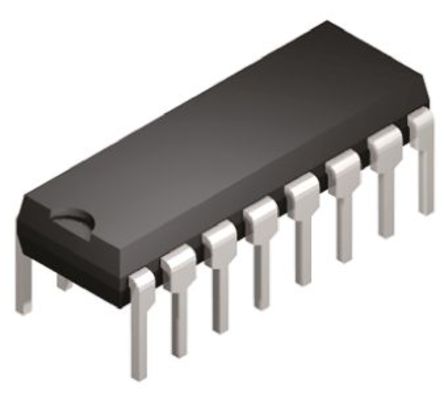

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The highly integrated FAN4800AU/CU parts are specially designed for power supplies that consist of boost PFC and PWM. They require very few external components to achieve versatile protections and compensation. They are available in 16-pin DIP and SOP packages.
Features
Pin-to-Pin Compatible with ML4800, FAN4800, CM6800, and CM6800A
PWM Configurable for Current-Mode or Feed-Forward Voltage-Mode Operation
Internally Synchronized Leading-Edge PFC and Trailing-Edge PWM in One IC
Low Operating Current
Innovative Switching-Charge Multiplier Divider
Average-Current-Mode for Input-Current Shaping
PFC Over-Voltage and Under-Voltage Protections
PFC Feedback Open-Loop Protection
Cycle-by-Cycle Current Limiting for PFC/PWM
Power-on Sequence Control and Soft-Start
Line Sagging Protection
fRTCT=4•fPFC=4•fPWM for FAN4800AU
fRTCT=4•fPFC=2•fPWM for FAN4800CU

Show

FAN4800AUN Specifications
