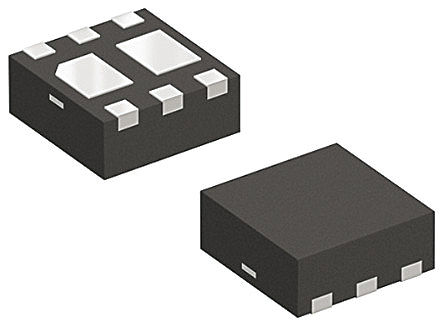

FAN5308MPX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC109993430
Category:
DC to DC Converter
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 5.5V Step Down Single-Out 0.8V to 5.5V 0.8A 6Pin MLP EP T/R
Stock Locations:
Availability:
1,277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this step down FAN5308MPX DC to DC converter from Fairchild Semiconductor. This converter"s single output can produce a current up to 0.8 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.15%(Typ) and line regulation of 0.16%/V(Typ). This converter is 96 % efficient. Its switching regulator has a frequency of 1300(Typ) kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

FAN5308MPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	MLP-6
Supply Voltage (DC)	2.50V (min)
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	800 mA
Switching Frequency	1.3 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.8 V
Output Current (Max)	800 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Weight	0.0024961189772 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
