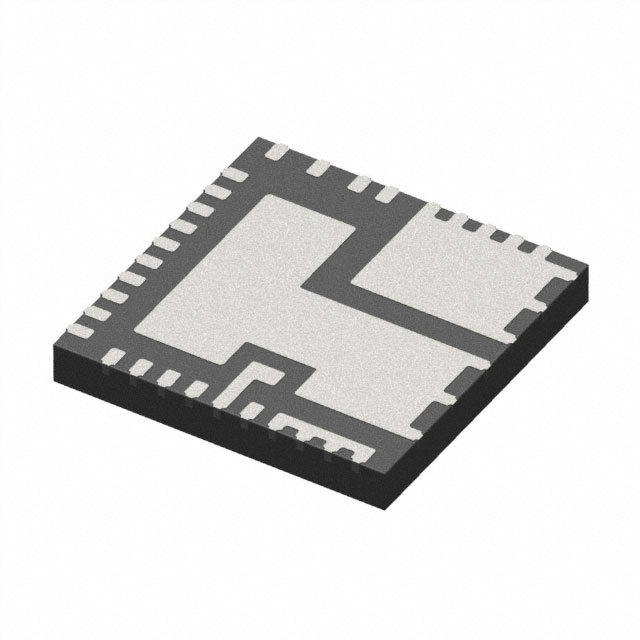

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The New FAN65008B Synchronous PWM Buck regulator a wide VIN highly efficient synchronous buck regulator, with integrated high side and low side power MOSFETs. The devices incorporate a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 10A. FAN65008B includes a 0.67% accurate reference voltage to achieve tight regulation. The switching frequency can be programmed from 100 kHz to 1 MHz. This single phase buck regulator offers complete protection features including Over current protection Thermal shutdown, Under-voltage lockout, Over voltage protection, Under voltage protection and Short-circuit protection. This device is available in a compact 6 x 6 mm PQFN package
- External Compensation for Wide Operation Range
- Adjustable Soft-Start & Pre-Bias Startup
- Enable Function with Adjustable Input Voltage
- Under-Voltage-Lock-Out (UVLO)
- Power Good Indicator
- Wide Input Voltage Range: 4.5V to 65V
- Switching Frequency: 100kHz to 1MHz
FAN65008B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 35 Pin |
| Case/Package | QFN |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 8 A |
| Number of Positions | 35 Position |
| Input Voltage (Max) | 65 V |
| Input Voltage (Min) | 4.5 V |
| Output Current (Max) | 10 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 65V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
