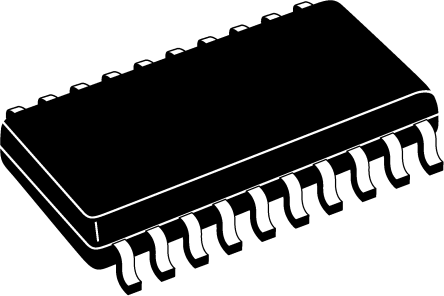

Image is for your reference only,please check specifications for details

FAN7388MX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC71107713
Category:
FET Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
Driver 600V 0.65A 6Out Hi/Lo Side Half Brdg Non-Inv 20Pin SOIC W T/R
Stock Locations:
Availability:
1,290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.96

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN7388MX is an input logic compatible monolithic 3-Phase Half-bridge Gate-Drive IC designed for high-voltage, high-speed driving MOSFETs and IGBTs operating up to 600V. Its high-voltage process and common-mode noise cancelling technique provide stable operation of high-side drivers under high-dv/dt noise circumstances. The UVLO circuits prevent malfunction when VDD and VBS are lower than the specified threshold voltage. Output drivers typically source/sink 350/650mA, respectively, which is suitable for three-phase half-bridge applications in motor drive systems.
Matched propagation delay below 50ns
Built-in shoot-through prevention circuit for all channels with 270ns typical dead time
Built-in common-mode dv/dt noise cancelling circuit
Built-in UVLO functions for all channels

Show

FAN7388MX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	10.0V (min)
Rise/Fall Time	50ns, 30ns
Number of Outputs	6 Output
Output Current	650 mA
Number of Positions	20 Position
Power Dissipation	1.47 W
Rise Time	50 ns
Output Current (Max)	0.65 A
Fall Time	30 ns
Fall Time (Max)	80 ns
Fall Time (Max)	120 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1800 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Length	12.8 mm
Size-Width	7.5 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
