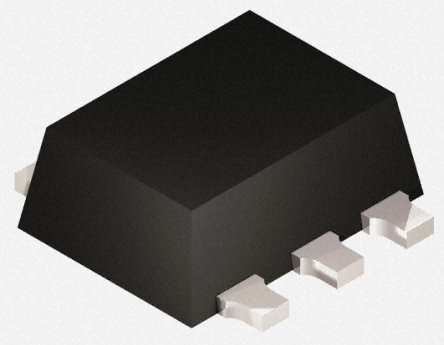

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FC6946010R is a dual N-channel MOSFET designed for use with switching applications.
- UL94V-0 Flammability rating
- Halogen-free
- ±12V Gate to source breakdown voltage
- 200mA Pulse drain current
- 2.5V Low drive voltage
FC6946010R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SSMini6-F3-B |
| Number of Channels | 2 Channel |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 6 Ω |
| Polarity | Dual N-Channel |
| Power Dissipation | 125 mW |
| Threshold Voltage | 1.2 V |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60 V |
| Continuous Drain Current (Ids) | 0.1A |
| Input Capacitance (Ciss) | 12pF @3V(Vds) |
| Input Power (Max) | 125 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 125 mW |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.5 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
