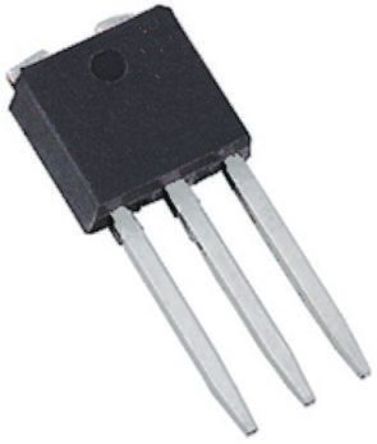

Image is for your reference only,please check specifications for details

FCU900N60Z - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC101252671
Category:
MOSFET, MOSFET Transistor
Package:
TO-251-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FCU900N60Z Power MOSFET, N Channel, 4.5A, 600V, 0.82Ω, 10V, 2.5V
Stock Locations:
Availability:
9,364 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
SuperFET®II is, Fairchild’s proprietary, new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.
Features
• 675V @TJ = 150oC
• Max. RDS(on) = 900mΩ
• Ultra Low Gate Charge (Typ. Qg = 13nC)
• Low Effective Output Capacitance (Typ. Coss.eff = 49pF)
• 100% Avalanche Tested
• ESD Improved Capacity

Show

FCU900N60Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-251-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.82 Ω
Polarity	N-Channel
Power Dissipation	52 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	4.5A
Rise Time	5.3 ns
Input Capacitance (Ciss)	710pF @25V(Vds)
Input Power (Max)	52 W
Fall Time	11.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	52W (Tc)
	Show
Size-Length	6.8 mm
Size-Width	2.5 mm
Size-Height	6.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
