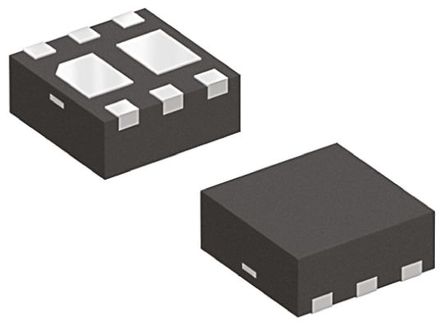

Image is for your reference only,please check specifications for details

FDFMA2P029Z - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC84477766
Category:
MOSFET, MOSFET Transistor
Package:
MicroFET-6
Datasheet:
Datasheet 3D Model
Description:
Integrated P-Channel PowerTrench MOSFET and Schottky Diode -20V, -3.1A, 95mohm
Stock Locations:
Availability:
2,175 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FDFMA2P029Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	MicroFET-6
Voltage Rating (DC)	-20.0 V
Current Rating	-3.10 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	95.0 mΩ
Polarity	P-Channel
Power Dissipation	1.4 W
Input Capacitance	720 pF
Gate Charge	10.0 nC
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	-3.10 A
Rise Time	11 ns
Input Capacitance (Ciss)	720pF @10V(Vds)
Input Power (Max)	700 mW
Fall Time	36 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.4 W
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
