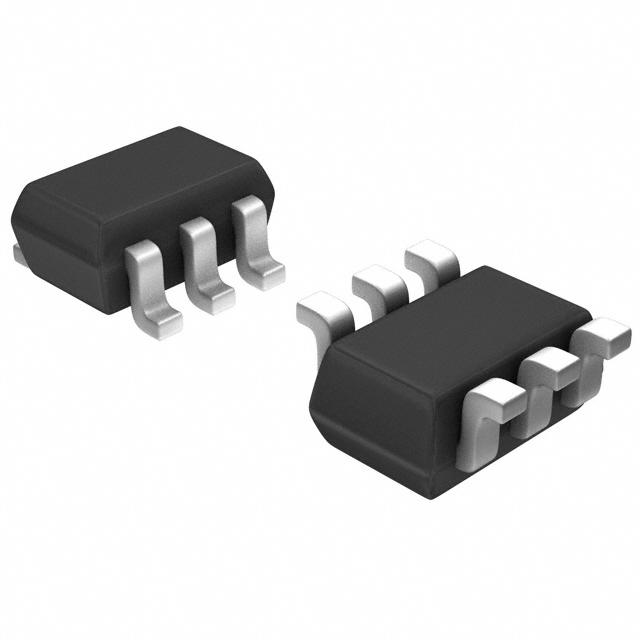

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Dual P-Channel, Digital FET General Description These dual P-Channel logic level enhancement mode field effect transistors are produced using Fairchild"s proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. This device has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs. Features Very low level gate drive requirements allowing direct operation in 3 V circuits . Compact industry standard SC70-6 surface mount package.
FDG6304P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Voltage Rating (DC) | -25.0 V |
| Current Rating | -410 mA |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.85 Ω |
| Polarity | P-Channel, Dual P-Channel |
| Power Dissipation | 300 mW |
| Input Capacitance | 62.0 pF |
| Gate Charge | 1.10 nC |
| Drain to Source Voltage (Vds) | 25 V |
| Breakdown Voltage (Drain to Source) | -25.0 V |
| Continuous Drain Current (Ids) | -410 mA |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 62pF @10V(Vds) |
| Input Power (Max) | 300 mW |
| Fall Time | 35 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
