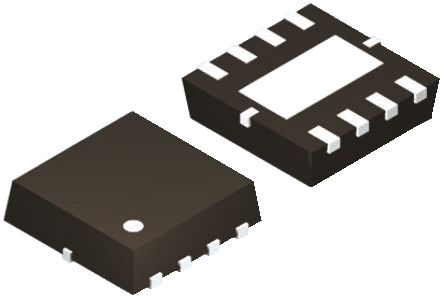

Image is for your reference only,please check specifications for details

FDMS7698 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC85238600
Category:
MOSFET, MOSFET Transistor
Package:
Power-56-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDMS7698 MOSFET Transistor, N Channel, 22A, 30V, 0.0081Ω, 10V, 2V
Stock Locations:
Availability:
9,714 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.76

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 30 V 13.5A (Ta), 22A (Tc) 2.5W (Ta), 29W (Tc) Surface Mount 8-PQFN (5x6)

Show

FDMS7698 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-56-8
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0081 Ω
Polarity	N-Channel
Power Dissipation	29 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	13.5A
Input Capacitance (Ciss)	1605pF @15V(Vds)
Input Power (Max)	2.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 29W (Tc)
	Show
Size-Length	5 mm
Size-Width	6 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
