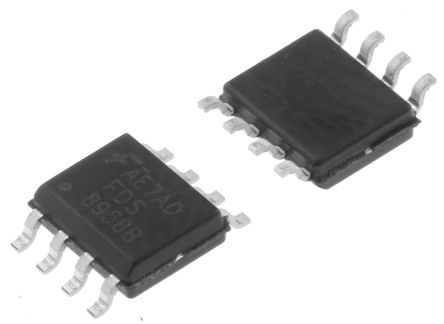

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDS8958B is a dual N/P-channel MOSFET produced using advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance and yet maintain superior switching performance. The device is well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required. It is suitable for use with DC-to-DC converter, BLU and motor drive inverter applications.

Show

FDS8958B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.021 Ω
Polarity	N-Channel, P-Channel
Power Dissipation	2 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	6.4A/4.5A
Input Capacitance (Ciss)	540pF @15V(Vds)
Input Power (Max)	900 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.6 W
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.575 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
