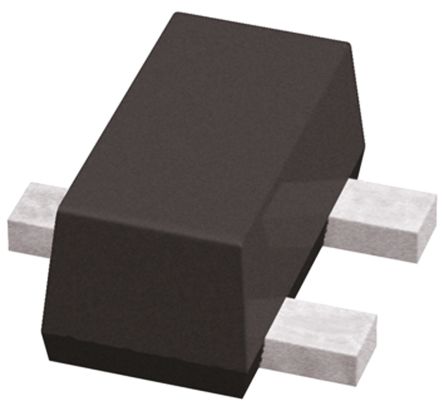

Image is for your reference only,please check specifications for details

FDY301NZ - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12599550
Category:
MOSFET, MOSFET Transistor
Package:
SC-89-6
Datasheet:
Datasheet 3D Model
Description:
Small Signal Field-Effect Transistor, 0.2A I(D), 20V, 1Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, SC-89, 3Pin
Stock Locations:
Availability:
10,670 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDY301NZ is a single N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process to optimize the RDS (ON) at VGS = 2.5V. It is suitable for Li-ion battery pack application.
ESD protection diode

Show

FDY301NZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-89-6
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5 Ω
Polarity	N-Channel
Power Dissipation	625 mW
Threshold Voltage	1.5 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	200 mA
Rise Time	8 ns
Input Capacitance (Ciss)	60pF @10V(Vds)
Input Power (Max)	446 mW
Fall Time	2.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	Show
Size-Length	1.7 mm
Size-Width	0.98 mm
Size-Height	0.78 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
