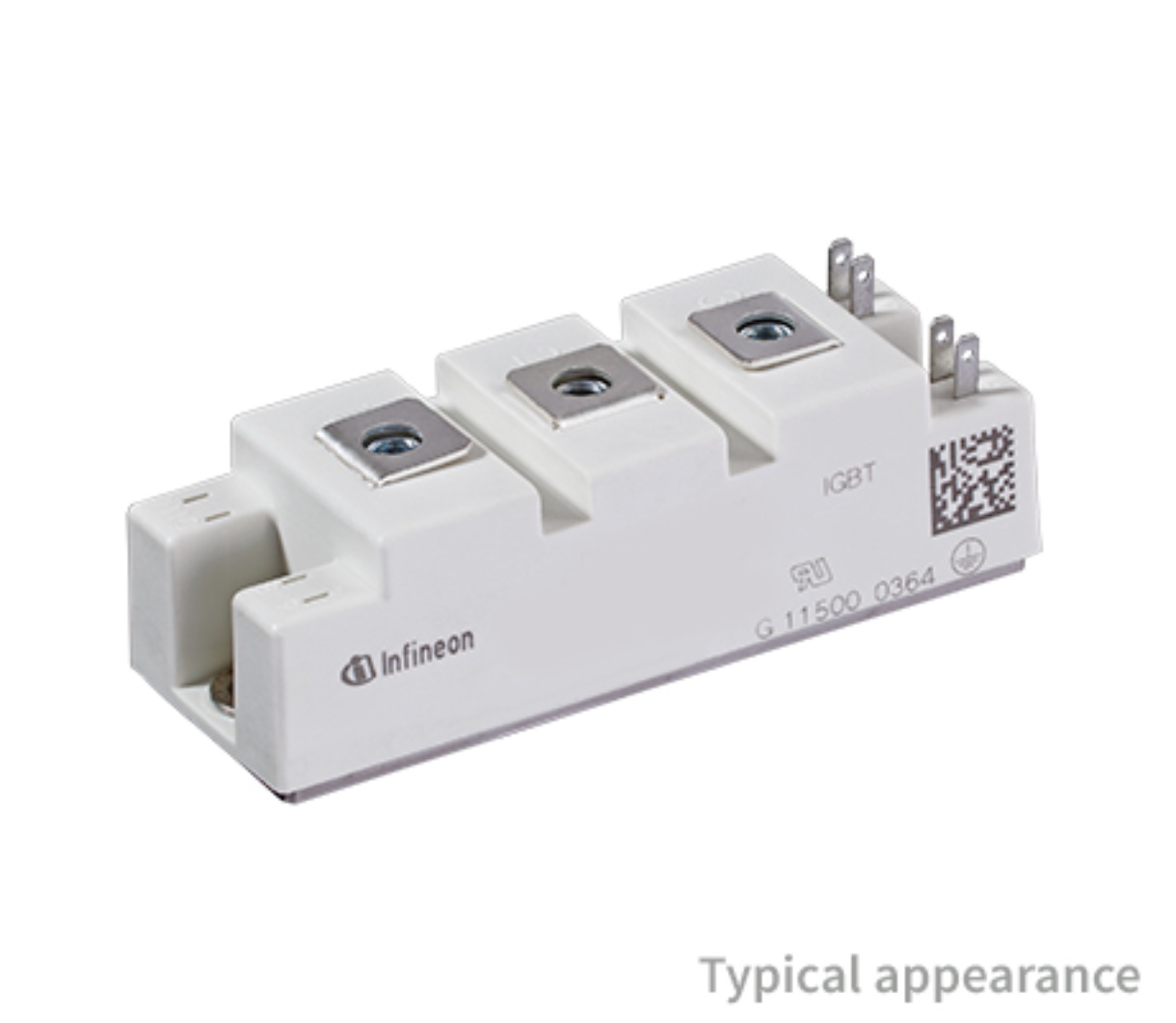

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Extended Operation Temperature T vj op
- Low Switching Losses
- Low V CEsat
- T vj op = 150°C
- V CEsat with positive Temperature Coefficient
- Isolated Base Plate
- Standard Housing
- Benefits:
- Flexibility
- Optimal electrical performance
- Highest reliability
FF75R12RT4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 7 Pin |
| Case/Package | AG-34MM-1 |
| Power Rating | 395 W |
| Power Dissipation | 395 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 395 W |
| Show | |
| Size-Length | 94 mm |
| Size-Width | 34 mm |
| Size-Height | 30.2 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
