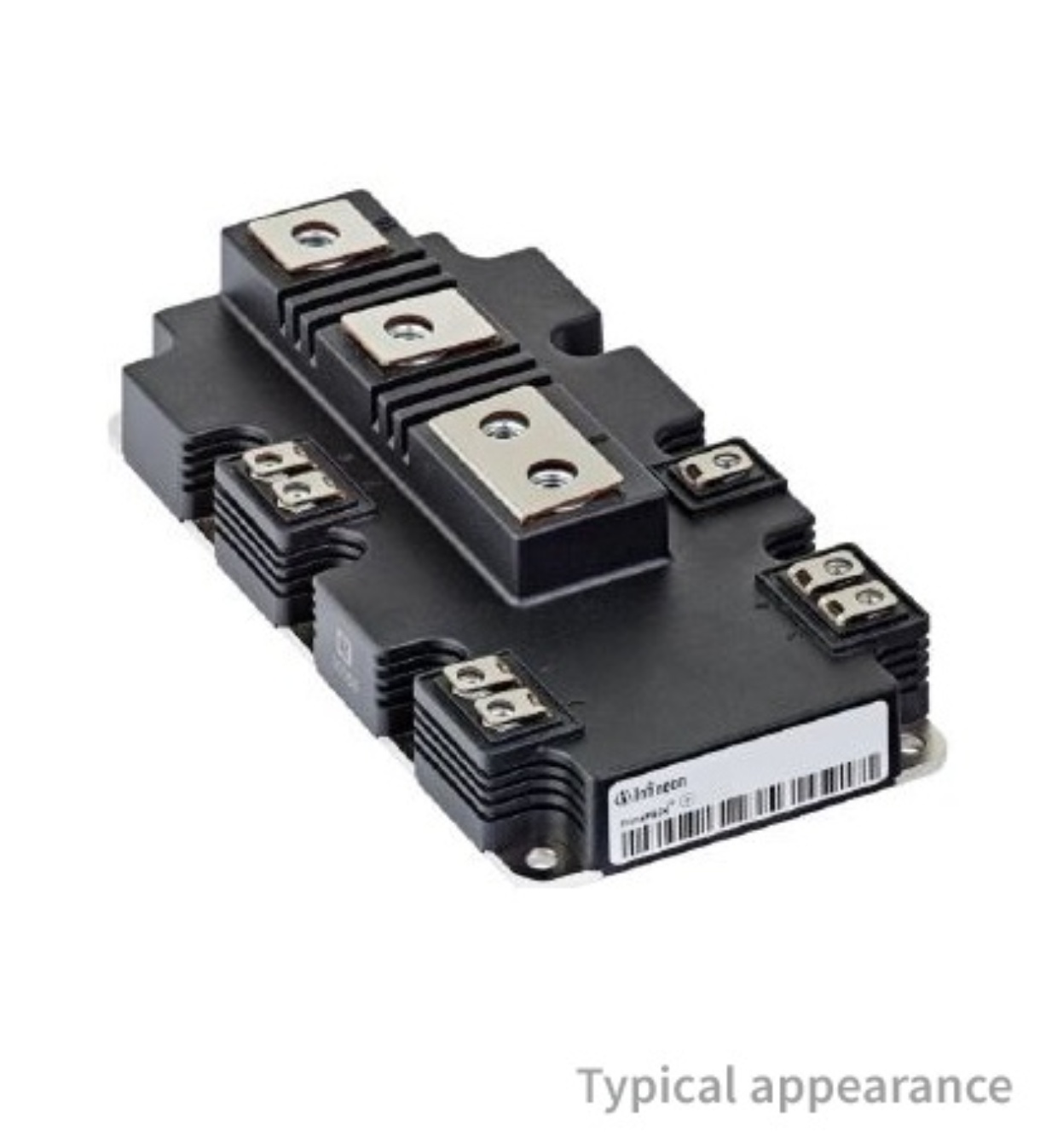

Image is for your reference only,please check specifications for details
- FF900R12IP4 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC131266750
-
Category:IGBT Transistor, IGBT Module
-
Package:PRIME-2
-
Datasheet:Datasheet 3D Model
-
Description:Trans IGBT Module N-CH 1.2kV 900A 8Pin PRIME2-1
-
Stock Locations:
-
Availability:206 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1150.86
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Extended Operation Temperature T(tvj op)
- High DC Stability
- High Short Circuit Capability, Self Limiting Short Circuit Current
- Unbeatable Robustness
- V(cesat) with positive Temperature Coefficient
- Low V(cesat)
- 4kV AC 1min Insulation
- Package with CTI > 400
- High Creepage and Clearance Distances
- High Power and Thermal Cycling Capability
- Substrate for Low Thermal Resistance
- UL recognized
- Benefits:
- High Power Density
- Standardized housing
FF900R12IP4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 8 Pin |
| Case/Package | PRIME-2 |
| Power Rating | 5100 W |
| Polarity | N-Channel |
| Power Dissipation | 5.1 kW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Power Dissipation (Max) | 5100000 mW |
| Show | |
| Size-Length | 172 mm |
| Size-Width | 89 mm |
| Size-Height | 38 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
