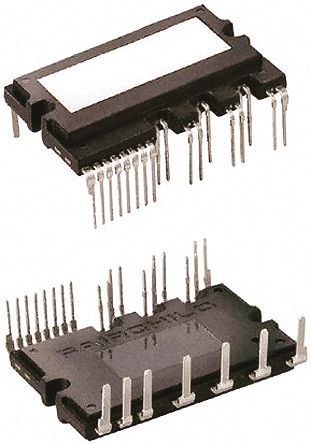

FPAB30BH60 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC56622696
Category:
IGBT Transistor, IGBT Module
Package:
SPM27-IA
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FPAB30BH60 Intelligent Power Module (IPM), SPM, IGBT, 600V, 30A, 2.5kV, SPM27-IA, SPM3V
Stock Locations:
Availability:
4,460 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FPAB30BH60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-IA
Frequency	20.0 kHz
Supply Voltage (DC)	15.0V (max)
Input Voltage (DC)	264 V
Power Dissipation	169000 mW
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	169000 mW
	Show
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.7 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
