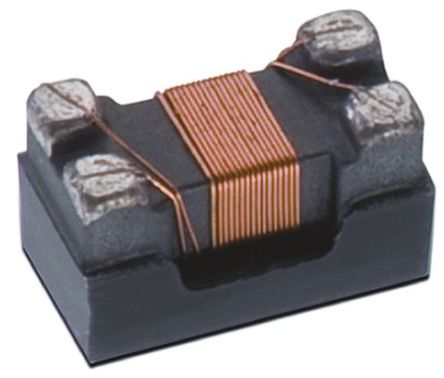

Image is for your reference only,please check specifications for details

744233670 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC11264133
Category:
Inductor Choke
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
Line filter SMD 0805 Contact spacing 0805 mm 0.24Ω 67Ω 0.32A Wuerth Elektronik WE-CNSW 744233670 1 pc(s)
Stock Locations:
Availability:
1,786 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744233670 is a WE-CNSW-series 320Ma/50V common mode Line Filter with ferrite base. It features current compensated data line filter, high common mode noise suppression at high frequencies, small influence on high speed signals through winding symmetry. Suitable for USB 2 or 3 versions, HDMI, LVDS, high-speed data lines and IEEE 1394 (FireWire).
-40 to 125°C Operating temperature range

Show

744233670 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	0805
Voltage Rating (DC)	50 V
Current Rating	320 mA
DC Resistance (DCR)	≤240 mΩ
Current Rating (Max)	320 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	50 VDC
Voltage Rating	50 V
Resistance (DC Max)	240 mΩ
	Show
Size-Length	1.2 mm
Size-Width	0.85 mm
Size-Height	2 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
