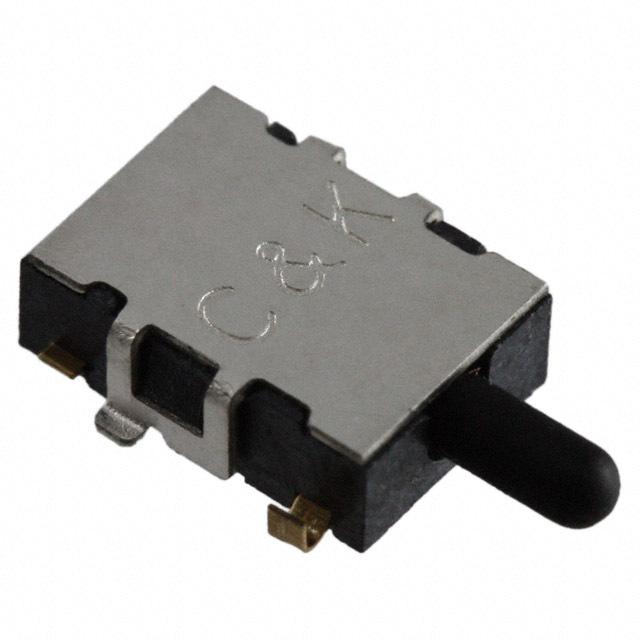

Image is for your reference only,please check specifications for details

SDS004 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC10184618
Category:
Switch
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
C & K COMPONENTS SDS004 Detector Switch, SPST-NO, SMD, 100mA, 12V, 2mm
Stock Locations:
Availability:
413 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.49

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SDS004 is a SPST black surface-mount unsealed Side Actuated Detect Switch with OFF-mom switch function and glass filled polyamide overtravel plunger actuator. This SDS series switch has glass filled LCP base, gold flash plated phosphor bronze contacts and terminals.
Right-angle termination
Low-profile
2mm overtravel ideal for detector applications
75g Maximum low actuation force
100mR Maximum initial contact resistance
10MR Minimum Insulation Resistance at 100VDC
-40 to 85°C Operating temperature range

Show

SDS004 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	12 V
Current Rating	100mA (DC)
Contacts Type	SPST-NO
Contact Resistance	100 mΩ
Current Rating (Max)	0.1A @12VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	2 mm
Contact Material	Phosphor Bronze
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
