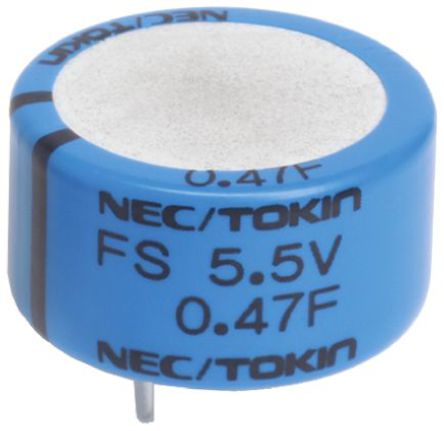

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Overview
**FS Series Supercapacitors, also known as Electric Double-Layer Capacitors (EDLCs), are intended for high energy storage applications.**
Applications
**Supercapacitors have characteristics ranging from traditional capacitors and batteries. As a result, supercapacitors can be used like a secondary battery when applied in a DC circuit. These devices are best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.**
Benefits
**
* Wide Range of Temperature from –25°C to +70°C
* Maintenance Free
* 5.5 VDC, 11.0 VDC, and 12.0 VDC
* Highly Reliable Against Liquid Leakage
* Lead-Free and RoHS Compliant

Show

FS0H105ZF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	10.16 mm
Voltage Rating (DC)	5.50 V
Capacitance	1 F
Equivalent Series Resistance (ESR)	7 Ω
Capacitance Tolerance	+80 %
Part Family	FS
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	5.5 V
	Show
Size-Length	14 mm
Size-Height	14 mm
Size-Diameter	Φ28.50mm
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1
Life (Hours)	1000h @70℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
