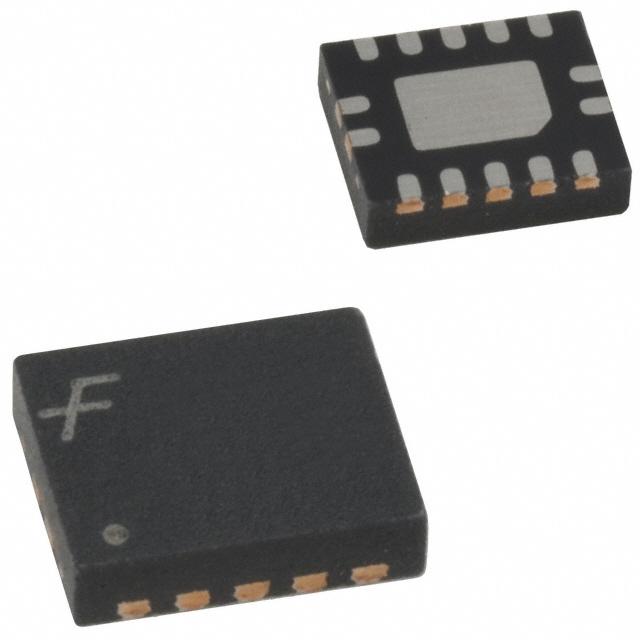

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSA2380 is a Double-Pole, Triple Throw (DP3T) multiplexer that routes three dual-channel sources of data or audio under the control of a single pair of select pins. The FSA2380 has special circuitry on the 1A/2A pins to allow a power-off feature. With the V supply removed and voltage on the 1A/2A pins, there is minimal leakage current into the 1A/2A data pins. The FSA2380 also features very low quiescent current and a power-off feature to extend battery life. The low quiescent current feature allows mobile handset applications direct interface with the baseband processor general-purpose I/Os. Typical applications involve switching in portables and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers.
Features
---
|
10µA Maximum ICCT Current Over Expanded Control Voltage Range (VIN=2.6V, VCC=4.3V)
On Capacitance 70pF Typical
0.75Ω Typical On Resistance (RON)
1Bn, 2Bn Ports Support Negative Swing Audio to -2V
-3db Bandwidth: > 120 MHz Low Power Consumption (1µA Maximum)
Power-Off Feature for 1A/2A Pin (IIN <2µA)
Packaged in Pb-Free 14-Pin TSSOP and DQFN

Show

FSA2380BQX Specifications
