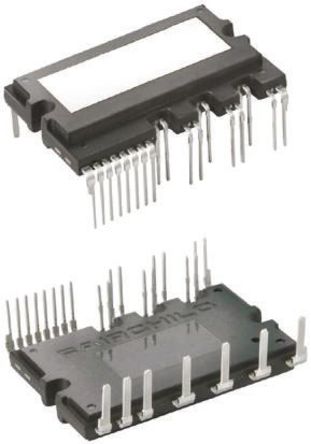

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FSBS10CH60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-BA
Number of Outputs	3 Output
Output Voltage	400 V
Output Current	10 A
Power Dissipation	27 W
Isolation Voltage	2500 Vrms
Breakdown Voltage (Collector to Emitter)	600 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	27000 mW
Supply Voltage	13.5V ~ 16.5V
	Show
Size-Length	44 mm
Size-Width	26.8 mm
Size-Height	5.5 mm
Operating Temperature	-20℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
