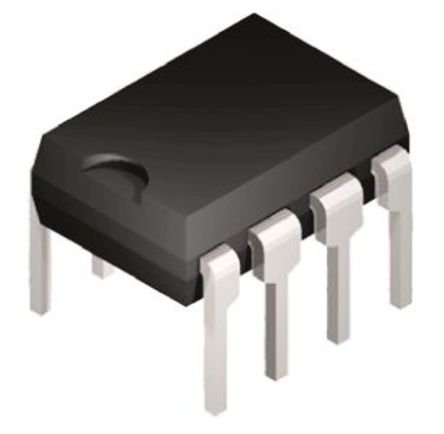

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FSL136HR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for high performance offline Switch-Mode Power Supplies (SMPS) with minimal external components. FSL136HR includes integrated high-voltage power switching regulators that combine an avalanche-rugged SenseFET with a current-mode PWM control block.
Features
Internal Avalanche-Rugged SenseFET (650V)
Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode
Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI
Internal Startup Circuit
Built-in Soft-Start: 20ms
Pulse-by-Pulse Current Limiting
Various Protections: Over-Voltage Protection
(OVP), Overload Protection (OLP), Output-Short
Protection (OSP), Abnormal Over-Current
Protection (AOCP), Internal Thermal Shutdown
Function with Hysteresis (TSD)
Auto-Restart Mode
Under-Voltage Lockout (UVLO)
Low Operating Current: 1.8mA
Adjustable Peak Current Limit
Applications
SMPS for VCR, STB, DVD, & DVCD Players
SMPS for Home Appliance
Adapter
