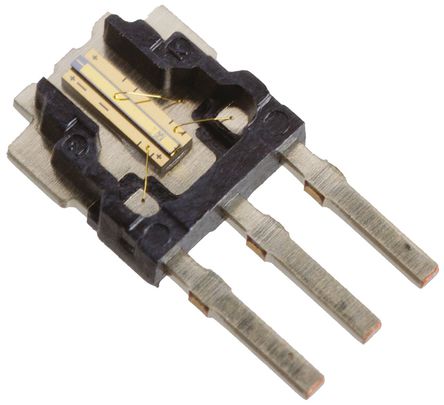

Image is for your reference only,please check specifications for details
- LNCT28PF01WW - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC55145396
-
Category:Diode Laser, Laser Diode
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:LNCT28PF01WW, 300mW, 380mW, Maximum of 3V, 3Pin 665nm, 791nm Laser Diode
-
Stock Locations:
-
Availability:817 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.48
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Laser Diode 661nm, 783nm 100mW 2.4V ~ 3V, 2.5V ~ 3V 180mA, 275mA 4-SIP
LNCT28PF01WW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | SIP-4 |
| Current Rating | 128 mA |
| Power Rating | 100 mW |
| Number of Positions | 3 Position |
| Wavelength | 661 nm, 783 nm |
| Peak Wavelength | 665 nm, 791 nm |
| Output Power | 380 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Supply Voltage (Max) | 3 V |
| Input Voltage | 2.4V ~ 3V, 2.5V ~ 3V |
| Show | |
| Size-Length | 5.15 mm |
| Size-Width | 1.65 mm |
| Size-Height | 3.75 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
