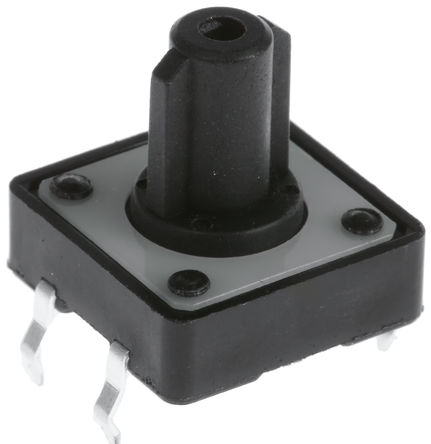

Image is for your reference only,please check specifications for details

FSM102 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC38431135
Category:
Tactile Switch, Jog Switch
Datasheet:
Datasheet 3D Model
Description:
ALCOSWITCH - TE CONNECTIVITY FSM102 Tactile Switch, Non Illuminated, 12V, 50mA, 160 gf, Through Hole, FSM100-104 Series
Stock Locations:
Availability:
1,924 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FSM102 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Silver
Voltage Rating (DC)	24 V
Current Rating	50 mA
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	SPST
Contact Current Rating	50mA @24VDC
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-35 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	14.1 mm
Size-Width	12 mm
Size-Height	12 mm
Contact Material	Copper Alloy
Operating Temperature	-35℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536504000
ECCN Code	EAR99
