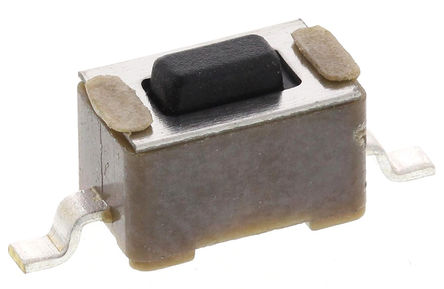

Image is for your reference only,please check specifications for details

FSMSM - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC14369244
Category:
Tactile Switch, Jog Switch
Datasheet:
Datasheet 3D Model
Description:
Tactile Switch; 50mA; 12VDC; 3.5 x 6mm; SPST; Stainless; Surface Mount
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSMSM is a single-pole single-throw 4.5mm black button Tactile Switch with rectangular actuator style, surface mount, vertical mounting angle, gull-wing terminals. Off-(On) switch operation and silver plated copper alloy contacts. Unthreaded bushing, black polyamide actuator, stainless steel cover and brown polyester case.
Low profile
Printed circuit board terminals

Show

FSMSM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Voltage Rating (DC)	24 V
Current Rating	50 mA
Number of Rows	1 Row
Contact Current Rating	50mA @24VDC
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	3.5 mm
Size-Width	3.5 mm
Size-Height	4.57 mm
Contact Material	Stainless Steel
Operating Temperature	-35℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536509065
ECCN Code	EAR99
