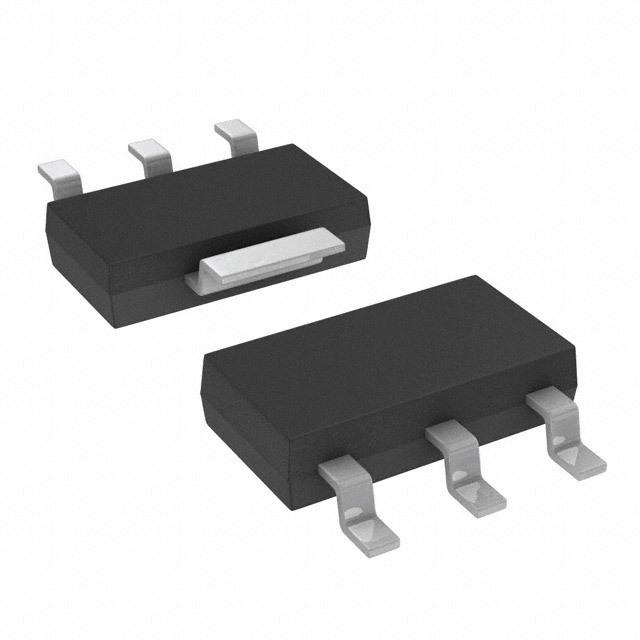

Image is for your reference only,please check specifications for details

FSQ500L - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC62046261
Category:
AC to DC Converter, AC/DC Power Module
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSQ500L AC-DC Off-Line Switcher IC, Green Mode, Flyback, 85VAC - 265VAC, 2.5W, SOT-223-4
Stock Locations:
Availability:
2,560 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.64

Updated at 20/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSQ500L is an Integrated Power Switch Pulse Width Modulator with 130kHz frequency and no bias winding for 2.5W offline fly-back converters. It is specially designed for a replacement of linear power supplies. This device combines current-mode Pulse Width Modulator (PWM) with a sense-FET. The integrated PWM controller features a fixed oscillator, under voltage lockout (UVLO) protection, overload protection (OLP), leading-edge blanking (LEB), an optimized gate turn-ON/OFF driver, thermal shutdown (TSD) protection with hysteresis and temperature-compensated precision-current sources for loop compensation. When compared to a linear power supply, the FSQ500L device reduces total size and weight, while increasing efficiency, productivity and system reliability. This device provides a basic platform for fly-back converters.
Internal start-up switch
Soft-start time tuned by external capacitor
Pulse-by-pulse current limit
Auto-restart mode
No need for auxiliary bias winding
130kHz Precision fixed operating frequency

Show

FSQ500L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Power Rating	2.5 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0 V
Output Current	0.245 A
Breakdown Voltage	700 V
Supply Current	0.76 mA
Number of Positions	4 Position
Power Dissipation	780 mW
Switching Frequency	130 kHz
Duty Cycle	60 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Current (Min)	0.245 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	780 mW
Input Voltage	10 V
	Show
Size-Height	1.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
