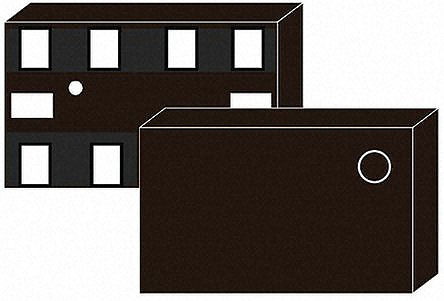

Image is for your reference only,please check specifications for details

FSUSB30L10X - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC77551217
Category:
Logic Control, Logic Gate IC
Package:
MicroPak-10
Datasheet:
Datasheet 3D Model
Description:
Fairchild Semiconductor FSUSB30L10X Intelligent Power Switch, USB Switch, -0.5 → 5.5V, 10Pin, MicroPak
Stock Locations:
Availability:
9,452 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

•Low Power 2-Port Hi-Speed USB 2.0 (480Mbps) Switch •Low On Capacitance, 6.5pF (typical) •Low On Resistance, 6.5Ω (typical) •Low power consumption (1μA maximum) – 10μA maximum ICCT over and expanded control voltage range (VIN = 2.6V, VCC = 4.3V) •Wide -3dB bandwidth, >720MHz •8KV ESD protection •Power OFF protection when VCC = 0V, D+/D- pins can tolerate up to 4.3V •Cell phone, PDA, Digital Camera, and Notebook •LCD Monitor, TV, and Set-top Box

Show

FSUSB30L10X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MicroPak-10
Supply Voltage (DC)	4.30 V
Number of Outputs	1 Output
Contacts Type	DPDT
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	6.50 Ω
Data Rate	480 Mbps
Bandwidth	720 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	720 MHz
	Show
Size-Length	2.1 mm
Size-Width	1.6 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
