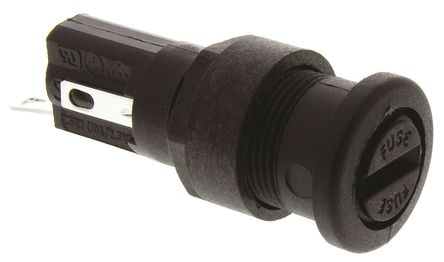

Image is for your reference only,please check specifications for details

FX0455 - Bulgin Components
Manufacturer:
Bulgin Components
ManyChip's Part#:
MC11280000
Category:
Fuse Holder
Package:
-
Datasheet:
Datasheet 3D Model
Description:
BT172D Series 16A Slotted Cap Panel Mount Fuse Holder For 5 x 20mm Fuse, PC2
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.73

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FX0455 is a 16A/250V panel mount Cartridge Fuse Holder with polyester body, nylon cap, glass filled nylon nut, brass/silver-plated contacts, solder lug termination, D-type fixing style and screw cap/screwdriver release fuse carrier. This fuse holder features protection category PC2 with integral protection against electric shock.
Low profile fixing
2.5W Maximum power dissipation (at 23°C)
>10²MR at 500VDC Insulation resistance
7kV at 50Hz AC Breakdown
<10mR Contact resistance
-20 to 85°C Operating temperature range
UL94V-0 Flammability rating

Show

FX0455 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder, Panel
Case/Package	-
Voltage Rating (DC)	500 V
Voltage Rating (AC)	250 V
Current Rating	10 A
Number of Circuits	1 Circuit
Reverse Breakdown Voltage	7 kV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	250 V
	Show
Color	Black
Contact Material	Brass
Material	Polyester
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
