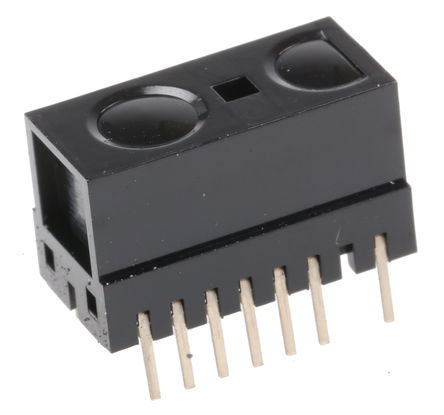

Image is for your reference only,please check specifications for details
- GP2Y0D805Z0F - Sharp
-
Manufacturer:Sharp
-
ManyChip's Part#:MC47462529
-
Category:Proximity Sensor
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Retroreflective Photoelectric Sensor, 40mm Min, 60mm Max, 0.60-4.4V, Rectangular, Through Hole Mount, 13.60 X 7MM, 7.95MM HEIGHT, ROHS COMPLIANT PACKAGE
-
Stock Locations:
-
Availability:284 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.81
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The GP2Y0D805Z0F is a distance measuring Sensor Unit, composed of an integrated combination of PSD (position sensitive detector), IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. The output voltage of this sensor stays high in case an object exists in the specified distance range. So this sensor can also be used as proximity sensor.
- Digital Output Type
- Short Distance Type
- Typical 50m Detection Distance
- Typical 5mA Consumption Current
- Sunlight Tolerance
- Add Vin Terminal and an External Transistor of VCC Line is Unnecessary at Intermittent Operating
GP2Y0D805Z0F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | - |
| Supply Current | 10.5 mA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Supply Voltage | 2.7V ~ 6.2V |
| Supply Voltage (Max) | 6.2 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 13.6 mm |
| Size-Width | 7 mm |
| Size-Height | 7.95 mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
