GTL2014PW - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC15605526
Category:
Active Chip
Package:

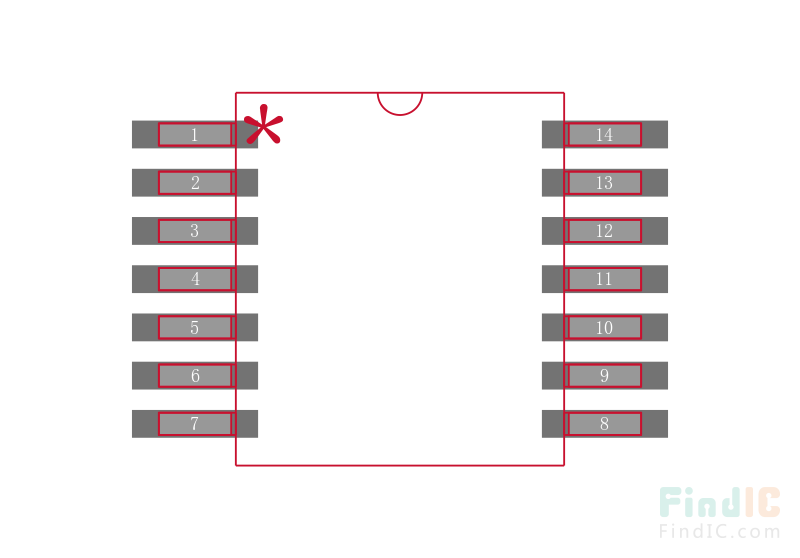

TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
IC SPECIALTY INTERFACE CIRCUIT, PDSO14, 4.4MM, PLASTIC, MO-153, SOT-402-1, TSSOP-14, Interface IC:Other
Stock Locations:
Availability:
1,061 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The GTL2014 is a 4-bit translating transceiver designed for 3.3 V LVTTL system interface with a GTL-/GTL/GTL+ bus, where GTL-/GTL/GTL+ refers to the reference voltage of the GTL bus and the input/output voltage thresholds associated with it.
The direction pin allows the part to function as either a GTL to LVTTL sampling receiver or as a LVTTL to GTL interface.
The GTL2014 LVTTL inputs (only) are tolerant up to 5.5 V allowing direct access to TTL or 5 V CMOS inputs. The LVTTL outputs are not 5.5 V tolerant.
The GTL2014 GTL inputs and outputs operate up to 3.6 V, allowing the device to be used in higher voltage open-drain output applications.
GTL2014 is pin-to-pin backward compatible to the GTL2005 (labels for A port and B port are interchanged). GTL2014’s Vref tracks down to 0.5 V for low voltage CPU, propagation delays are slightly longer, while GTL2005’s Vref linearity degrades below 0.8 V and has shorter propagation delay.
MoreLess
## Features
* Operates as a 4-bit GTL-/GTL/GTL+ sampling receiver or as a LVTTL to GTL-/GTL/GTL+ driver
* 3.0 V to 3.6 V operation with 5 V tolerant LVTTL input
* GTL input and output 3.6 V tolerant
* Vref adjustable from 0.5 V to VCC/2
* Partial power-down permitted
* ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-CC101
* Latch-up protection exceeds 500 mA per JESD78
* Package offered: TSSOP14
