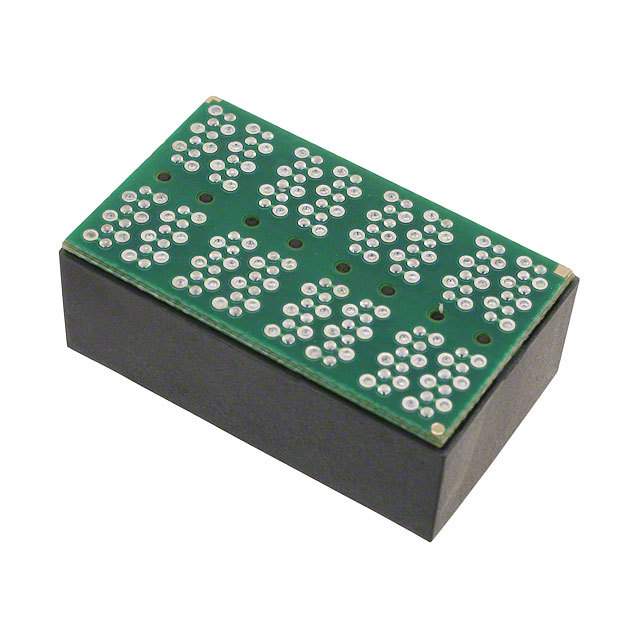

Image is for your reference only,please check specifications for details
- H5401NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC40034831
-
Category:Transformer
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1:1 0.65Ω Prim. DCR 0.65Ω Sec. DCR 24Term. SMD
-
Stock Locations:
-
Availability:2,197 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 19.46
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- H5401NL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. H5401NL is described as MODULE XFORMR QUAD GIGABIT SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
H5401NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Current Rating | 8 mA |
| Number of Channels | 1 Channel |
| Inductance | 350 µH |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Minimum CMRR Range | -50dB @2MHz |
| Resistance (DC Max) | 65 mΩ |
| Show | |
| Size-Length | 28.45 mm |
| Size-Width | 17.27 mm |
| Size-Height | 11.18 mm |
| Weight | 9.97 g |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
