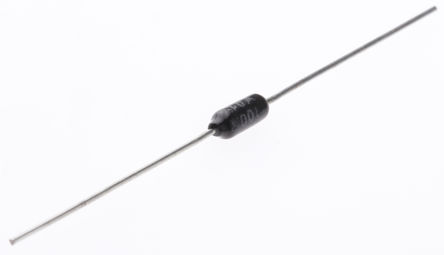

Image is for your reference only,please check specifications for details

H8100RBYA - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC51621793
Category:
Through-Hole Resistor
Package:
Axial
Datasheet:
Datasheet 3D Model
Description:
HOLSWORTHY - TE CONNECTIVITY H8100RBYA Through Hole Resistor, Metal Film, 100Ω, 350V, Axial Leaded, 0.25W(1/4W), ± 0.1%, H8 Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Holco H8 series are axial leaded precision metal film resistors that meet the requirement for economically priced components for industrial and military applications. The manufacturing facility utilises closely controlled production processes including the sputter coating of metal alloy films to ceramic substrates and laser spiralling to achieve close tolerance and high stability resistors. An epoxy coating is applied for environmental and mechanical protection.
Resistance value ranging from 10ohm to 1Mohm
Power rating of 0.25W at 70°C
Limiting element voltage of 350V
Temperature coefficient (TCR) of ±15ppm/°C
High pulse withstand
Low reactance
Long term stability

Show

H8100RBYA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Voltage Rating (DC)	350 V
Capacitance Tolerance	±0.1 %
Power Rating	0.25 W
Resistance	100 Ω
Resistance Tolerance	±0.1 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	350 V
	Show
Size-Length	7.2 mm
Size-Diameter	Φ2.50mm
Lead Length	30 mm
Operating Temperature	-55℃ ~ 155℃
Temperature Coefficient	±15 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
