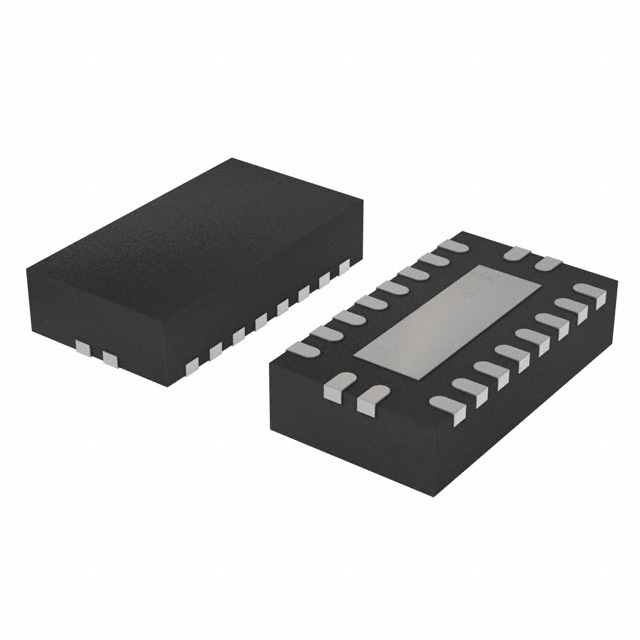

HD3SS3212IRKSR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1834834
Category:
USB Chip, USB Interface IC
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS HD3SS3212IRKSR USB Interface, Multiplexer / Demultiplexer Switch, USB 3.1, 3V, 3.6V, VQFN, 20Pins
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A.
The HD3SS3212 is a generic analog differential passive switch that can work for any high-speed interface applications requiring a common mode voltage range of 0 to 2 V and differential signaling with differential amplitude up to 1800 mVpp. It employs adaptive tracking that ensures the channel remains unchanged for the entire common mode voltage range.
Excellent dynamic characteristics of the device allow high-speed switching with minimum attenuation to the signal eye diagram with very little added jitter. It consumes <2 mW of power when operational and has a shutdown mode exercisable by OEn pin resulting <20 µW.

Show

HD3SS3212IRKSR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	20 Pin
Case/Package	VQFN-20
Supply Voltage (DC)	3.00V (min)
Supply Current	600 μA
Number of Channels	2 Channel
Number of Positions	20 Position
Data Rate	480 Mbps
Bandwidth	8 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	8 GHz
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
