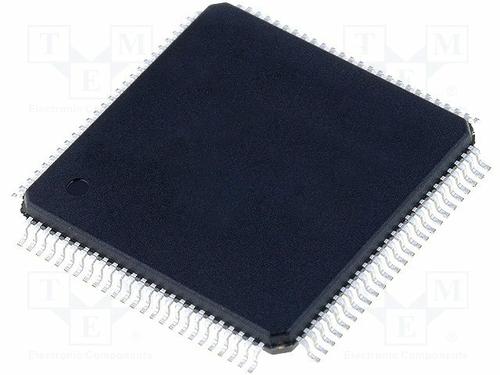

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HD64F2144FA20V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	QFP
Clock Speed	20.0 MHz
RAM Memory Size	4 KB
Number of Bits	16, 32 Bit
FLASH Memory Size	128 KB
Memory Size	128000 B
Number of ADCs	1 ADC
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-20 ℃
Number of DACs	1 DAC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-20℃ ~ 75℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
