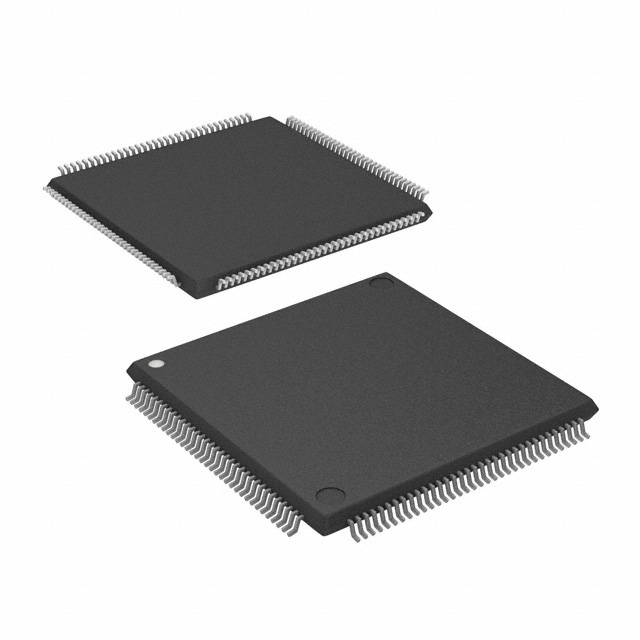

Image is for your reference only,please check specifications for details
- HD64F7145F50 - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC195850870
-
Category:Microcontroller, MCU IC
-
Package:LQFP-144
-
Datasheet:Datasheet 3D Model
-
Description:MCU 32Bit SuperH RISC 256KB Flash 3.3V 144Pin LQFP
-
Stock Locations:
-
Availability:242 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 31.17
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The SH7144 Group and SH7145 Group single-chip RISC (Reduced Instruction Set Computer)
- microcomputers integrate a Renesas Technology original RISC CPU core with peripheral functions required for system configuration.
- The SH7144 Group and SH7145 Group CPU has a RISC-type instruction set. Most instructions
- can be executed in one state (one system clock cycle), which greatly improves instruction
- execution speed. In addition, the 32-bit internal-bus architecture enhances data processing power.
- With this CPU, it has become possible to assemble low cost, high performance/high-functioning
- systems, even for applications that were previously impossible with microcomputers, such as realtime control, which demands high speeds.
- Features
- • Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer)architecture
- ⎯ Instruction length: 16-bit fixed length for improved code efficiency
- ⎯ Load-store architecture (basic operations are executed between registers)
- ⎯ Sixteen 32-bit general registers
- ⎯ Five-stage pipeline
- ⎯ On-chip multiplier: multiplication operations (32 bits× 32 bits →64 bits) executed in two to four cycles
- ⎯ C language-oriented 62 basic instructions
- • Various peripheral functions
- ⎯ Direct memory access controller (DMAC)
- ⎯ Data transfer controller (DTC)
- ⎯ Multifunction timer/pulse unit (MTU)
- ⎯ Compare match timer (CMT)
- ⎯ Watchdog timer (WDT)
- ⎯ Asynchronous or clocked synchronous serial communication interface (SCI)
- ⎯ I2C bus interface (IIC)1
- ⎯ 10-bit A/D converter
- ⎯ Clock pulse generator
- ⎯ User break controller (UBC)
- ⎯ User debugging interface (H-UDI)2
- ⎯ Advanced user debugger (AUD)2
- Notes: 1. Option
- 2. Supported only for flash memory version.
HD64F7145F50 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | LQFP-144 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Clock Speed | 50.0 MHz, 50.0 MHz (max) |
| RAM Memory Size | 8K x 8 |
| Number of I/O Pins | 98 IO |
| Access Time | 50.0 µs |
| Show | |
| Operating Temperature | -20℃ ~ 75℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
